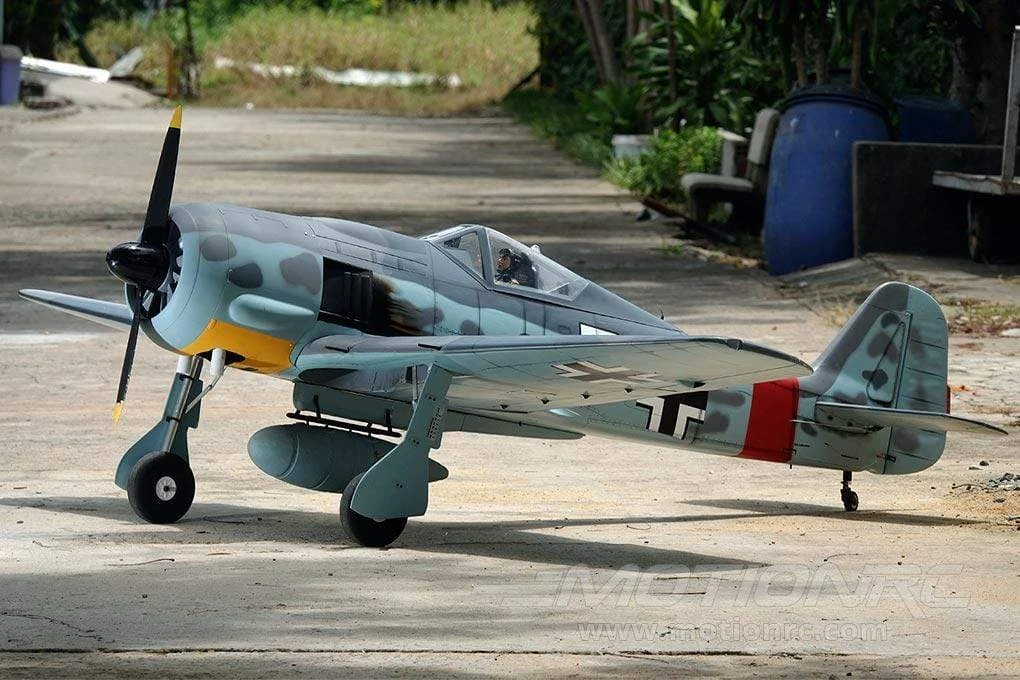

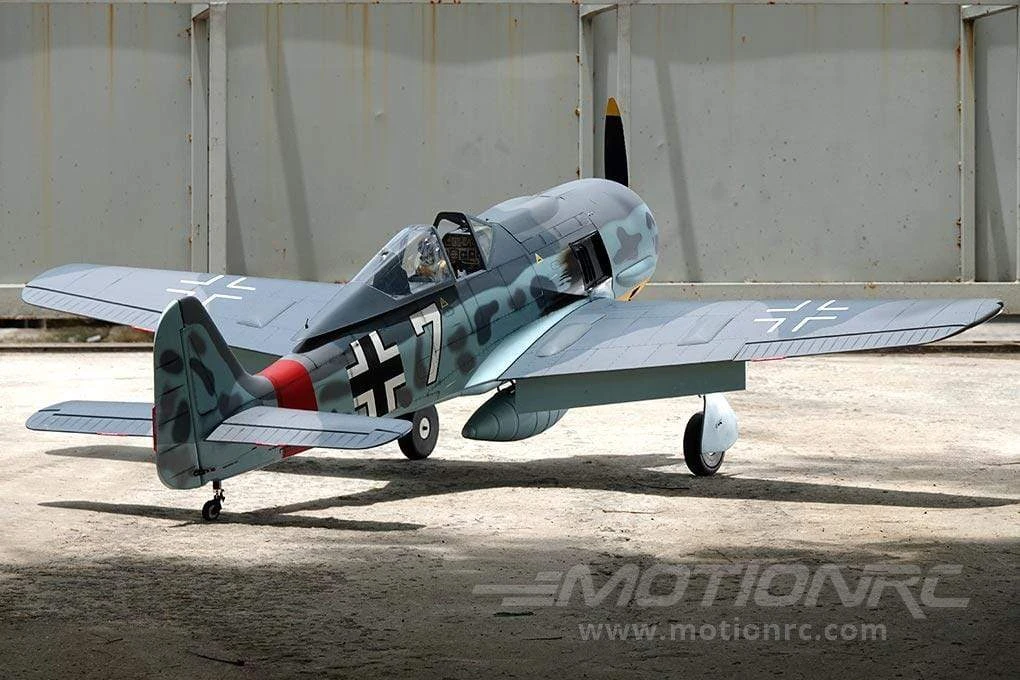

Black Horse Focke-Wulf FW-190A 2600mm (102.3″) Wingspan – ARF

Focke-Wulf FW-190A 2600mm (102.3″) Wingspan from Black Horse – Balsa Wood ARF – BHFW000

The Focke-Wulf Fw 190 Würger (English: Shrike) is a German single-seat, single-engine fighter aircraft designed by Kurt Tank in the late 1930s and widely used during World War II. Along with its well-known counterpart, the Messerschmitt Bf 109, the Fw 190 became the backbone of the Luftwaffe’s Jagdwaffe (Fighter Force). The twin-row BMW 801 radial engine that powered most operational versions enabled the Fw 190 to lift larger loads than the Bf 109, allowing its use as a day fighter, fighter-bomber, ground-attack aircraft and, to a lesser degree, night fighter.

The model is scaled to approximately 1:4 and attention was paid to a true to original appearance and best flight characteristics. The model can be operated using an electric power system or with an internal combustion engine about 120cc displacement.

Note: Cowl is 12 1/2″ across and has a height of 12″.

Visit the Official Black Horse Focke-Wulf FW-190A 2600mm Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.

Features:

• NEW! Now with electric retracts (used to be air)
• NEW! Spring-loaded CNC metal shock absorbing struts and tires
• High level of prefabrication right out of the box
• Lightweight, strong, laser cut balsa and plywood construction
• Panel lines and details printed directly onto the pre-applied, high quality covering
• Aerofoiled tail surfaces
• Recessed hinges on all control surfaces
• Pre-drilled hinge mounting holes
• Heavy-duty pin hinges on all control surfaces

• Large easy access fuel tank/battery/servo access hatches with sprung loaded latches
• Painted and detailed cockpit, pilot and interior included
• Fiberglass control horns with ball link connector
• comprehensive control and fitting accessories included

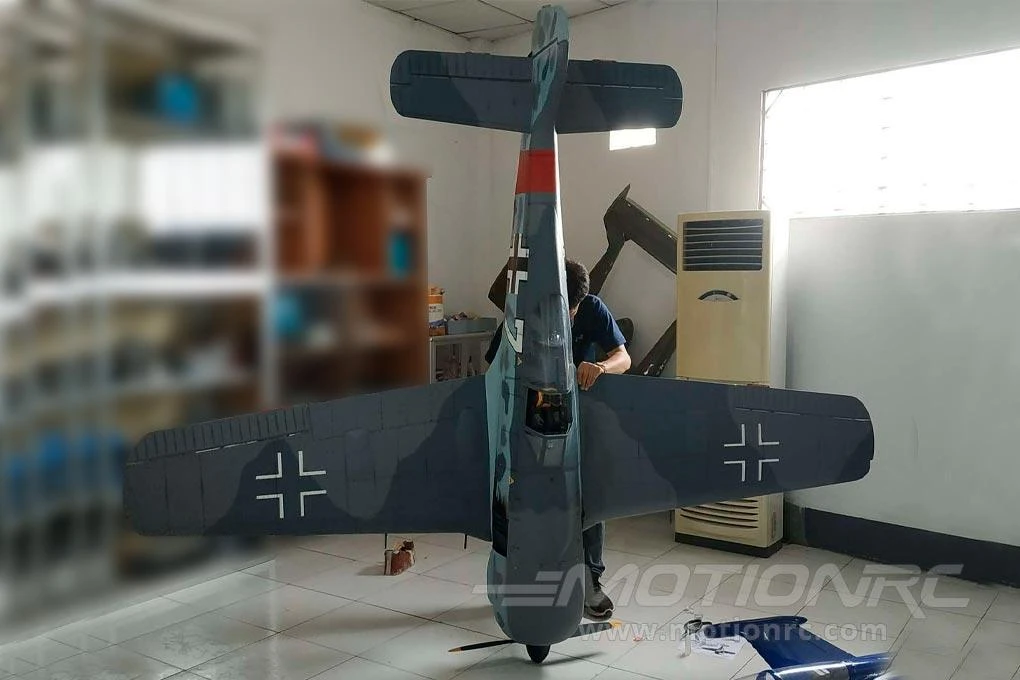

• Two-piece, plug-in wings simplify transportation and assembly
• Fiberglass cowl and glass reinforced landing gear covers/pants
• Mounts for both electric and gas power options included

Includes:

• Black Horse Focke-Wulf FW-190A 2600mm (102.3″) Wingspan – ARF
• Electric retractable landing gear and spring-loaded CNC metal shock absorbing struts

Requires (Electric):

• 7 Channel radio – select a minimum 7 channel radio from our Radio Collection
• 7 Channel receiver – select a minimum 7 channel receiver from our Receiver Collection
• 180-185Kv Brushless Outrunner Motor – we recommend the Admiral GP60 8925-180Kv Brushless Motor
• 85-120 Amp Brushless ESC – we recommend ZTW Gecko 120A ESC OPTO High Voltage Brushless ESC
• 8-18 Amp UBEC – we recommend ZTW 18A BEC / UBEC
• 8x high torque servos – we recommend D-645MW (Note: these must be run at a minimum of 6V to generate enough torque. Customers will need a 9th servo for throttle if using a gas motor.)
• For 12S setup TWO 6 Cell 22.2V 6000 mAh LiPo Batteries with EC5 connector in series – we recommend the Admiral Pro 6000mAh 6S 22.2V 50C LiPo Battery with EC5 Connector Multi-Pack (2 Batteries)
• 2 to 1 EC5 series adapter – we recommend Admiral EC5 2 to 1 Series Adapter
• Electric 28×10 propeller
• 6 Cell compatible battery charger – select a minimum 6 cell (6S) charger from our Charger Collection

Requires (Gas):

• Engine: 120cc gas – we recommend the Admiral 125cc Two-Stroke Engine
• Gas Propeller: 27×10
