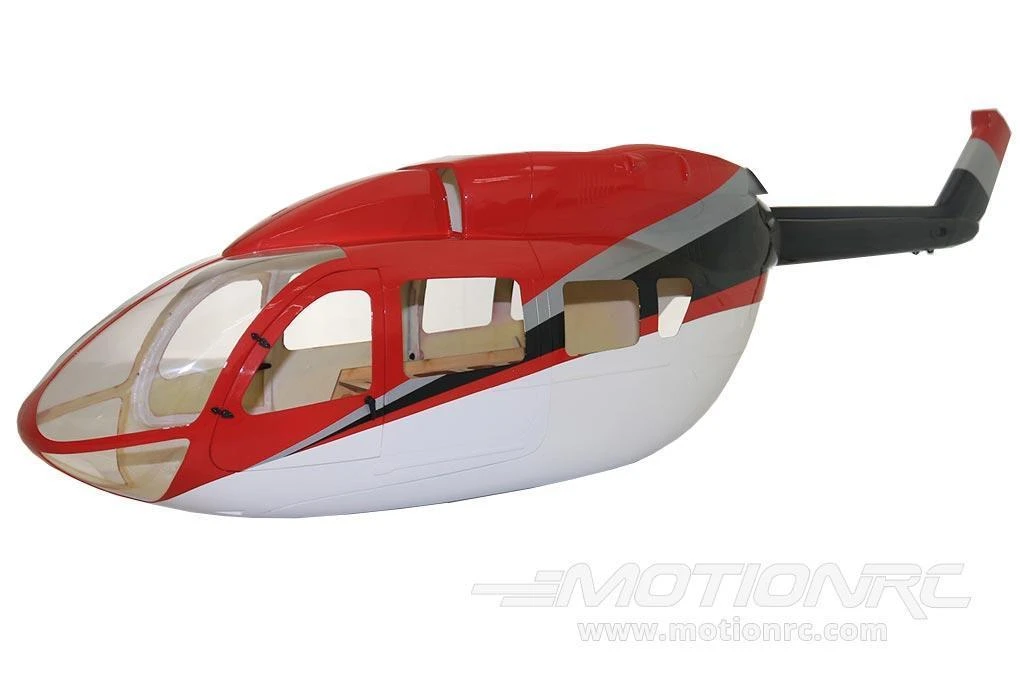

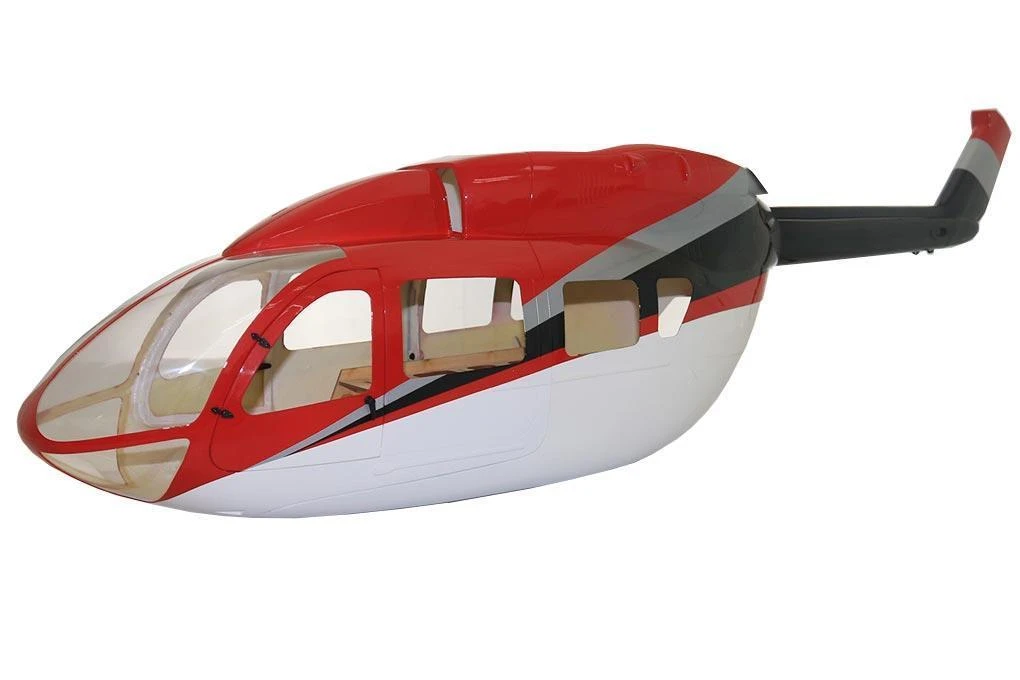

Roban EC-145 ERA 600 Size Helicopter Scale Conversion – KIT

EC-145 ERA 600 Size Helicopter Scale Conversion Kit from Roban – RBN-KF145ERA-6

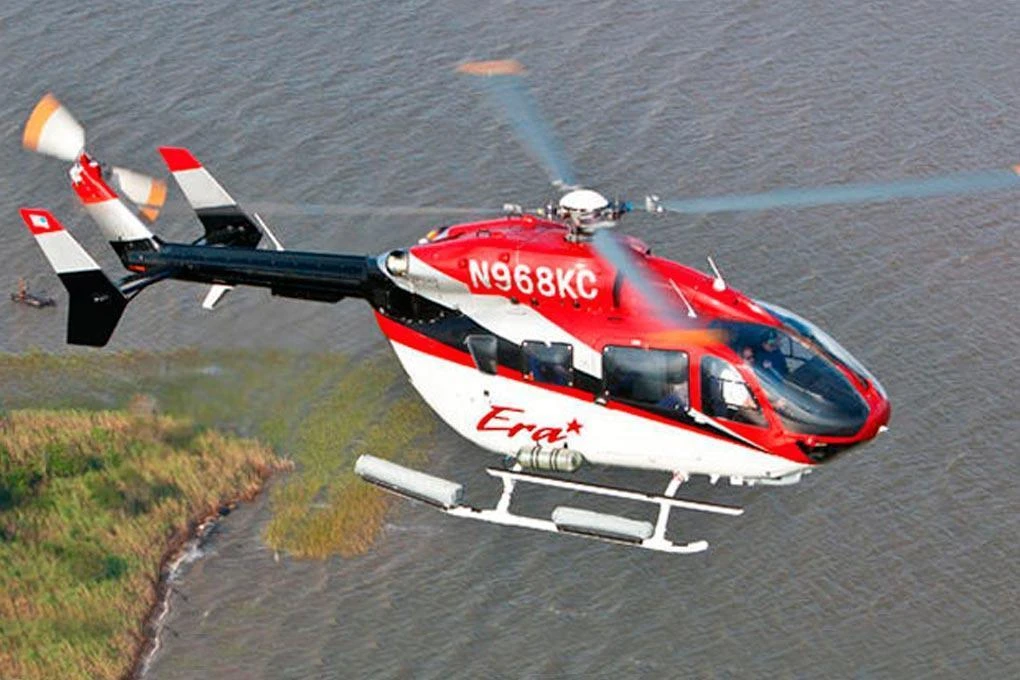

The Eurocopter EC145 is a twin-engine light utility helicopter developed and manufactured by Eurocopter, which was rebranded as Airbus Helicopters in 2014. The EC145 is a twin-engine helicopter and can carry up to nine passengers along with two crew, depending on customer configuration. The helicopter is marketed for passenger transport, corporate transport, emergency medical services (EMS), search and rescue, parapublic and utility roles. This is the 600 size EC-145 ERA version. Designed to take your Chaos 600 or Trex 600ESP torque tube versions* and transform it into a very scale RC version of the full scale helicopter. This kit includes everything you need to install your mechanics, including the 45 degree angle raised tail gearbox specially designed for easy plug-n-play install in the Chaos or Align mechanics.

These 600 scale conversion kits from Roban offer special designed side frames which are designed to offer 2 primary special features. One is to lower the transmission which allows the torque tube to travel thru the lower tail boom of the helicopter which has always been a problem with most military helicopters. Probably the most revolutionary design in scale helicopters, these frames allow the entire mechanical system to be tucked up inside the dog house just like the full scale helicopters.

No more mechanics taking up the entire fuselage area leaving no room for cockpits, rear seats, etc.

Most of the work is done for you. All wood work is installed. Pre-drilled holes for easy install of the landing gear. Standard 600 set up is an 1100 Kv brushless outrunner motor, 80-100 amp ESC and a 6S 22.2V 5000 mAh or higher LiPo battery.

This fuselage can be completed in as little as 4-6 hrs and is intended for the intermediate to advanced builder.

Visit the Official Roban 600 Size EC-145 ERA Scale Helicopter Conversion Kit Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.

Features:

• Fully painted fiberglass scale fuselage
• Magnetic cabin lock system for quick and easy access
• Extremely detailed surface and molded panel lines
• Use of 600 standard equipment (6S Battery, 1100Kv motor), fly with your existing parts

Includes:

• Roban EC-145 ERA 600 body kit

Requires:

• 600 Size helicopter kit – we recommend the Phoenixtech 600ESP helicopter kit
• Helicopter flight controller – we recommend the BeastX MicroBeast Plus Flybarless System
• Electronic speed control (ESC) – we recommend the Castle Creations Phoenix Edge 100A ESC with 5A SBEC
• Battery eliminator circuit (BEC) – we recommend the Castle Creations 20A BEC Pro
• Brushless motor – we recommend the Scorpion HKIV 4025-1100Kv Brushless Motor
• Three cyclic servos – we recommend the MKS DS1220 High Torque Servo Multi-Pack (3 Servos)
• Tail servo – we recommend the MKS HBL669 Standard Tail Servo
• 6 Cell 22.2V 5000 mAh LiPo Battery with EC5 connector – We recommend the Admiral 6 Cell 22.2V 5000 mAh LiPo Battery with EC5 Connector
• 8 Channel radio – select a minimum 8 channel radio with pitch and throttle curves from our Radio Collection
• 8 Channel receiver – select a minimum 8 channel receiver from our Receiver Collection

Optional:

• Castle Link USB ESC Programming Kit V3
