Kyosho Fazer Mk2 Blue Dodge Challenger SRT Hellcat 1/10 Scale 4WD Car – RTR

Fazer Mk2 Blue Dodge Challenger SRT Hellcat 1/10 Scale 4WD Car – RTR from Kyosho – KYO34415T2

Version Info: This truck is delivered as “RTR”, however does require 4x AA batteries for the transmitter, a 7.4V 5000mAh LiPo battery and a battery charger, purchased separately (see Requires below for details).

The Kyosho EP Fazer Mk2 FZ02L 2015 Dodge SRT Challenger Hellcat ReadySet was carefully replicated and styled after the full size Challenger. The pure enjoyment of driving an incredibly realistic body on the FAZER Mk.2 series chassis can’t be beaten. Kyosho took the Fazer touring car chassis and gave it a full makeover that improves performance with a simplified design and fewer parts to make maintenance easier and reduce weight. The core strength and rigidity has been increased with updated materials, ribbing and stiffeners on front and rear. A symmetrical chassis design creates excellent front-rear balance through the suspension with responsive control, regardless of power source.

Featuring front & rear gear differentials, oil shocks and full ball bearings, combined with the high durability and impact resistance drivers can unleash the full potential of the chassis. Brake disc wheel hubs with two different offsets (0mm, +5mm) provide compatibility with 190mm and 200mm width body styles and allows the wheelbase to be adjusted to 260mm by replacing some parts (sold separately) for compatibility with other 1/10 scale body styles. The Readyset package comes fully assembled and includes everything except charger and battery for the chassis, batteries for the transmitter and it is backed by Motion RC’s world-renowned customer service and technical support. Drive on!

  Visit the Official Kyosho Fazer Mk2 Challenger SRT Hellcat 1/10 Scale 4WD Car Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.

New Chassis Design Completely new chassis realizes low center of gravity with its simple, functional design. Featuring an integrated gearbox that optimizes torsional rigidity of the main chassis, the nylon material reduces weight while improving impact resistance. Each key component has been reinforced in this simple design without upper deck.

Reduced Screws and Parts Features a reduced number and variety of screws and parts, and consolidation of frequently used screws into the same size. Most screws are flat head screws that can be removed with a 2.0mm hex wrench for easy disassembly.

Optimized Handling Handling factors such as bump steer and scrub radius are optimized on front suspension. Simple ball-connected steering knuckle promises reliable control movement. Interchangeable on both front and rear left-right hub carriers optimize spare parts utilization and improve maintenance efficiency.

Two Offset Brake Disc Wheel Hubs Includes choice of two offset brake disc wheel hubs with dummy calipers (for visual styling) that provide compatibility with 190mm and 200mm body widths.

New Design Oil Shocks New design oil shocks mark an evolutionary step up from previous models Oil shock is newly designed. Optimal front-rear geometry and balance simultaneously delivers both light handling and precise control. Equipped with long shock end allows a high ride height to pursue true scale appearance.

Wide Range of Gear Ratio Settings Standard spur and pinion gear setting is 68T and 32T, but 9 pinion gear settings can be used from 29T – 37T to produce a wide range of gear ratio settings. The new fixed gear mesh motor mount has holes for use with each different pinion gears. Just simply mount the motor directly to the hole locations corresponding to the pinion gear. No gear mesh adjustment is necessary.

Classic American Muscle The Dodge Challenger is a standard fixture in American Muscle.

Low Profile Tires Low profile tires with 7 spoke mesh wheels to match the unique American muscle car form of the Dodge Challenger.

New 550 Motor Comes with the new powerful 550 size 14T brushed motor(G14L). The long can with Steel ring around the motor case and internal cooling fan provides efficient torque and high speeds.

Features:

• Reduced number and variety of screws to simplify maintenance
• Two offset brake disc wheel hubs with dummy calipers (for visual styling) are included for 190mm and 200mm body compatibility

• Updated rebuildable oil filled shocks mark a step up from previous models
• Optimal front-rear geometry and balance simultaneously delivers both light handling and precise control
• Low profile tires with 7 spoke mesh wheels to match the unique American muscle car form of the Dodge Challenger
• Standard pinion and spur gear setting is 32T and 68T
• Pinion gear settings can be used from 29T – 37T (Sold separately) to produce a wide range of gear ratio settings

Includes:

• Kyosho Fazer Mk2 Challenger SRT Hellcat Blue 1/10 Scale 4WD Car – RTR
• Completed chassis with R/C radio installed
• Factory assembled body complete with color scheme

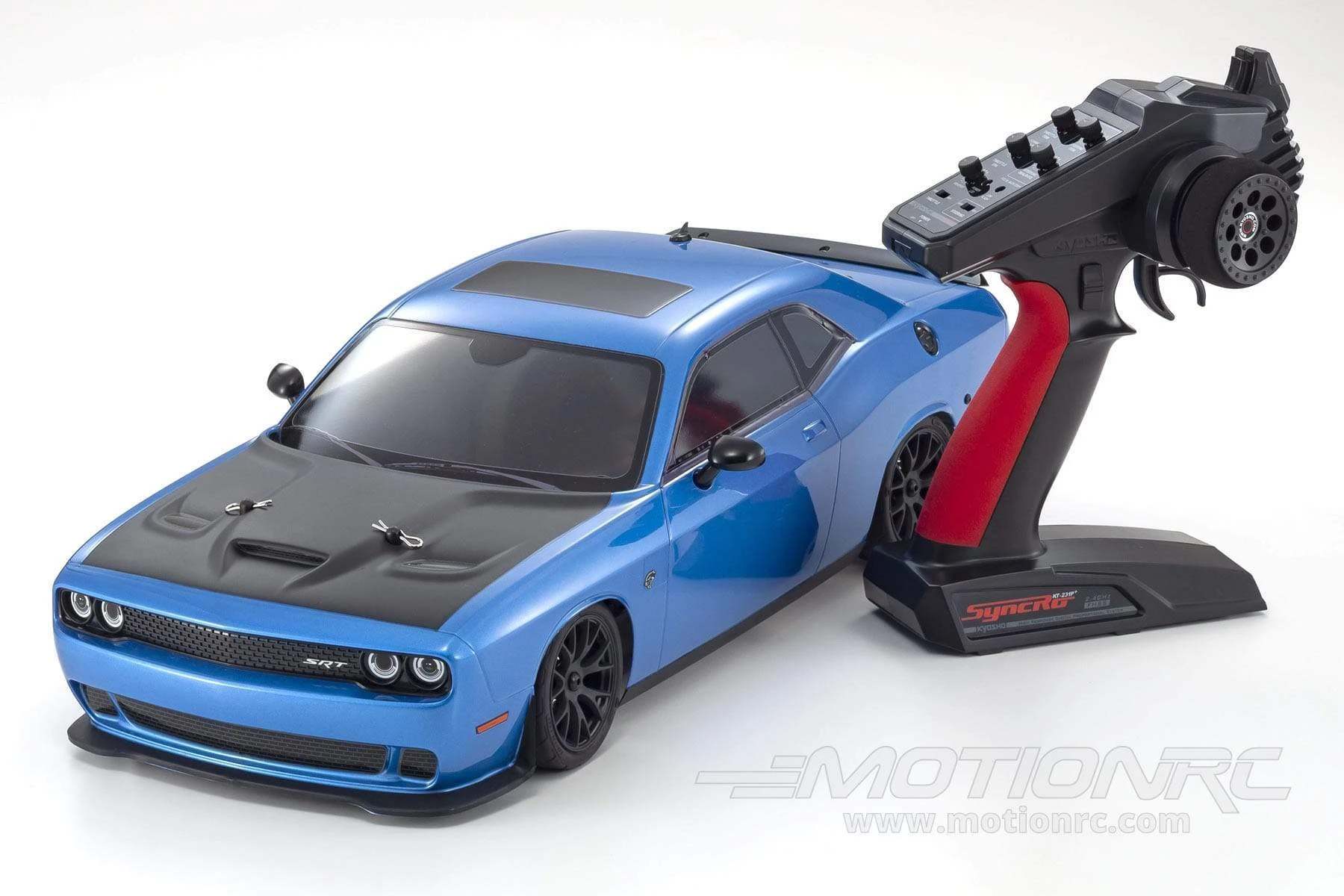

• Syncro KT-231P+ transmitter
• Installed 60A waterproof electronic speed controller (forward/brake/reverse)
• +5mm off-set wheel hub (for 200mm width chassis), M4 x 22 wheel screw
• Hexagonal wrench
• Spanner

Requires:

• 4x AA NiMH batteries – we recommend the Admiral AA NiMH 2600mAh Rechargeable Batteries (Pack of 4)
• 7.4V 4000 – 5000mAh LiPo battery – we recommend the Admiral 5300mAh 2S 7.4V 60C Hard Case LiPo Battery with T Connector
• 2S LiPo compatible battery charger – we recommend the SkyRC e3 11W 3 Cell (3S) Compact AC LiPo Battery Charger
