Kyosho Fazer Mk2 1969 Camaro Z/28 1/10 Scale 4WD Car – RTR

Fazer Mk2 1969 Camaro Z/28 1/10 Scale 4WD Car – RTR from Kyosho – KYO34418T1

Version Info: This truck is delivered as “RTR”, however does require 4x AA batteries for the transmitter, a 7.4V 5000mAh LiPo battery and a battery charger, purchased separately (see Requires below for details).

For the pure enjoyment of R/C car driving, the combination of a beautifully reproduced car body with the FAZER series chassis can’t be beaten. Kyosho has taken its standard touring car chassis and given it a full model makeover that has evolved performance to a new level. A simplified design with fewer parts has improved maintenance efficiency and reduced weight while core strength and rigidity has been increased through new materials and ribbing and stiffeners on front and rear.

In addition, the symmetrical chassis design synergizes excellent front-rear balance through the suspension with responsive control, irrespective of power source. Featuring slipper clutch, front & rear gear differentials, oil shocks and full ball bearing specs, the high durability and impact resistance allows drivers to unleash the full potential of the chassis.

Brake disc wheel hubs with two different offsets (0mm, +5mm) provide compatibility with 190mm and 200mm width body styles and allows the wheelbase to be adjusted to 260mm by replacing some parts (sold separately) for compatibility with other 1/10 scale body styles, in addition the body included.

The Readyset package comes fully assembled and includes everything except charger and battery for the chassis, batteries for the transmitter and it is backed by Motion RC’s world-renowned customer service and technical support. Drive on!

  Visit the Official Kyosho Fazer Mk2 1969 Camaro Z/28 1/10 Scale 4WD Car Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.

New Chassis Design Completely new chassis realizes low center of gravity with its simple, functional design. Featuring an integrated gearbox that optimizes torsional rigidity of the main chassis, the nylon material reduces weight while improving impact resistance. Each key component has been reinforced in this simple design without upper deck.

Reduced Screws and Parts Features a reduced number and variety of screws and parts, and consolidation of frequently used screws into the same size. Most screws are flat head screws that can be removed with a 2.0mm hex wrench for easy disassembly.

Optimized Handling Handling factors such as bump steer and scrub radius are optimized on front suspension. Simple ball-connected steering knuckle promises reliable control movement. Interchangeable on both front and rear left-right hub carriers optimize spare parts utilization and improve maintenance efficiency.

Two Offset Brake Disc Wheel Hubs Includes choice of two offset brake disc wheel hubs with dummy calipers (for visual styling) that provide compatibility with 190mm and 200mm body widths.

New Design Oil Shocks New design oil shocks mark an evolutionary step up from previous models Oil shock is newly designed. Optimal front-rear geometry and balance simultaneously delivers both light handling and precise control. Equipped with long shock end allows a high ride height to pursue true scale appearance.

Wide Range of Gear Ratio Settings Standard spur and pinion gear setting is 68T and 32T, but 9 pinion gear settings can be used from 29T – 37T to produce a wide range of gear ratio settings. The new fixed gear mesh motor mount has holes for use with each different pinion gears. Just simply mount the motor directly to the hole locations corresponding to the pinion gear. No gear mesh adjustment is necessary.

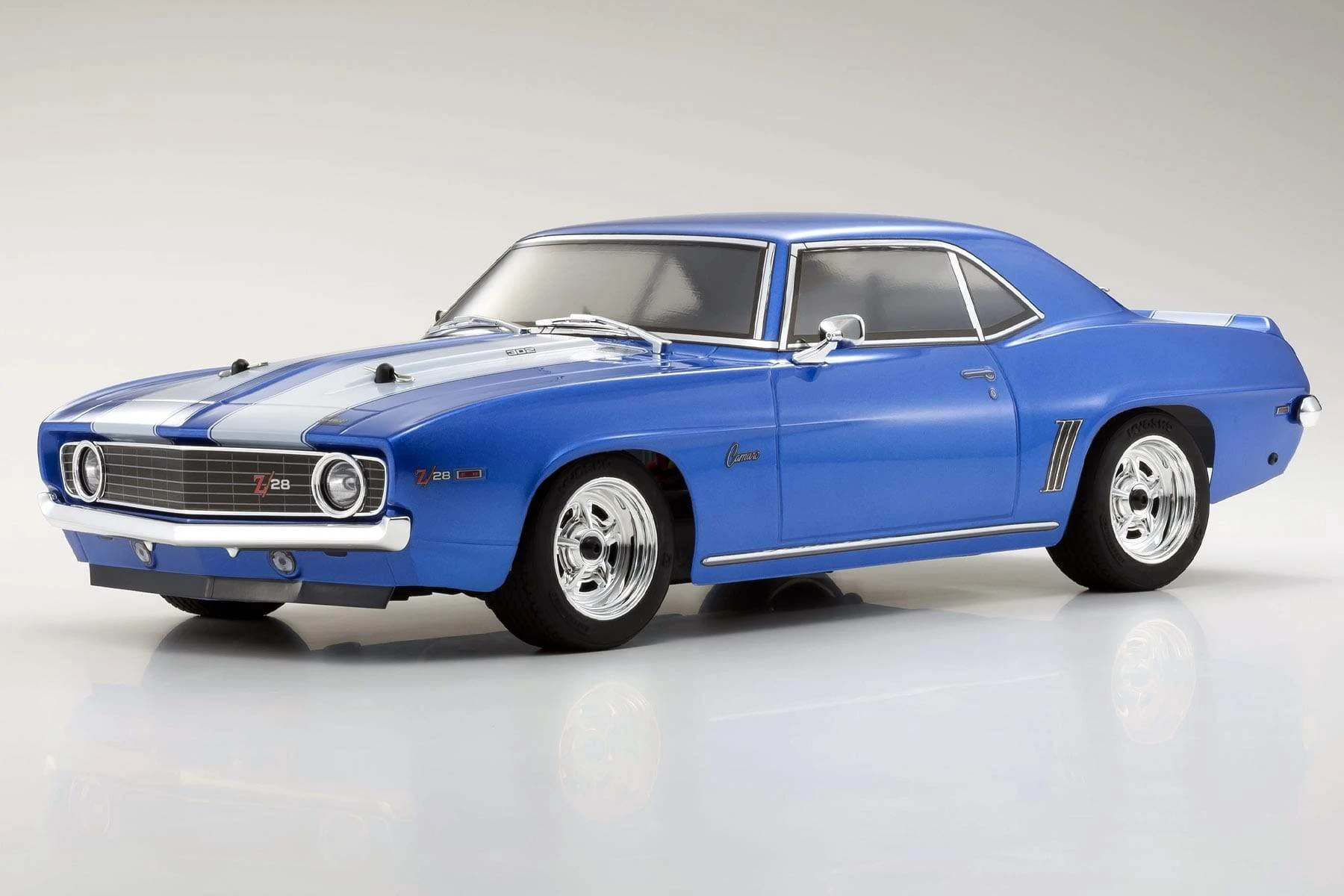

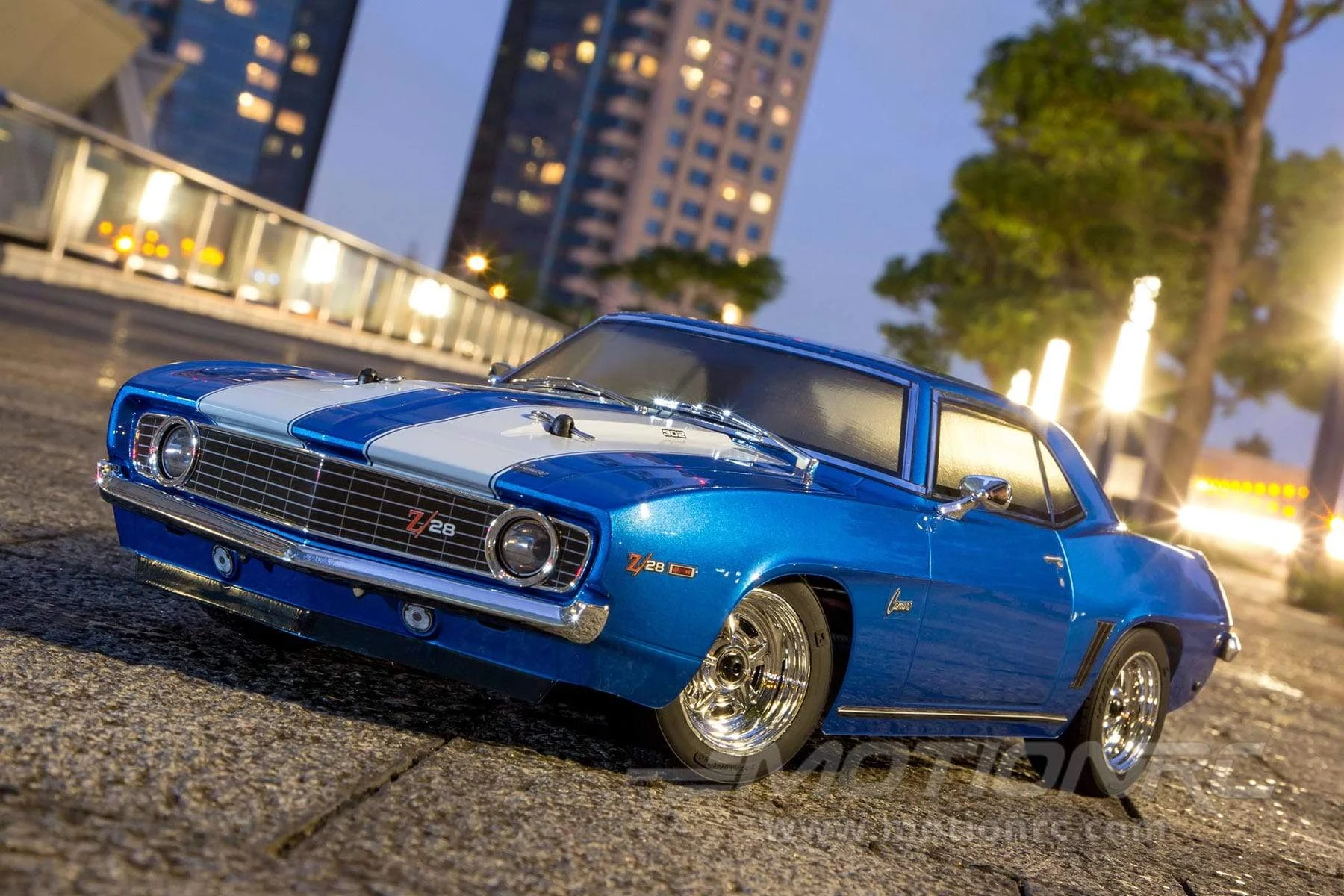

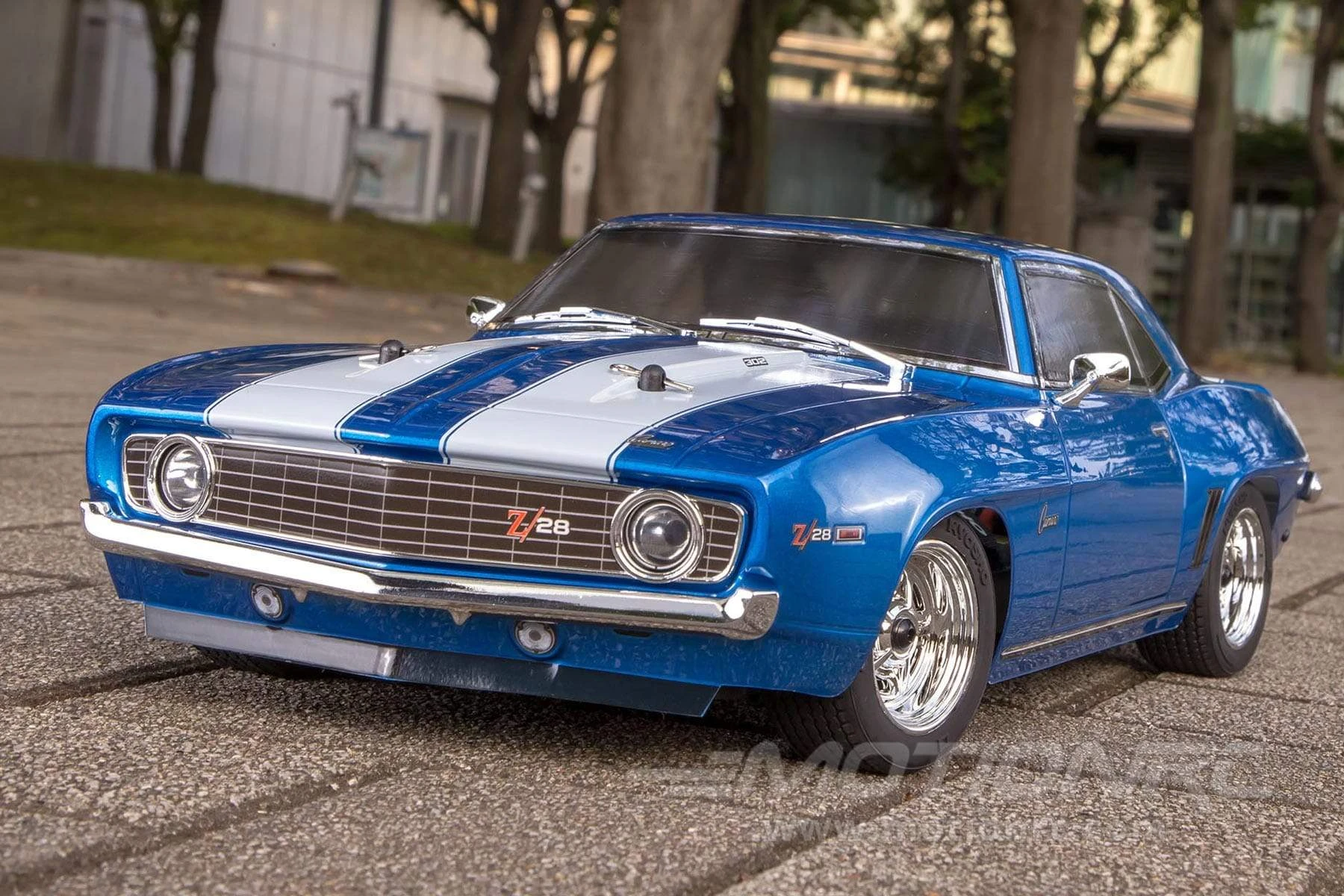

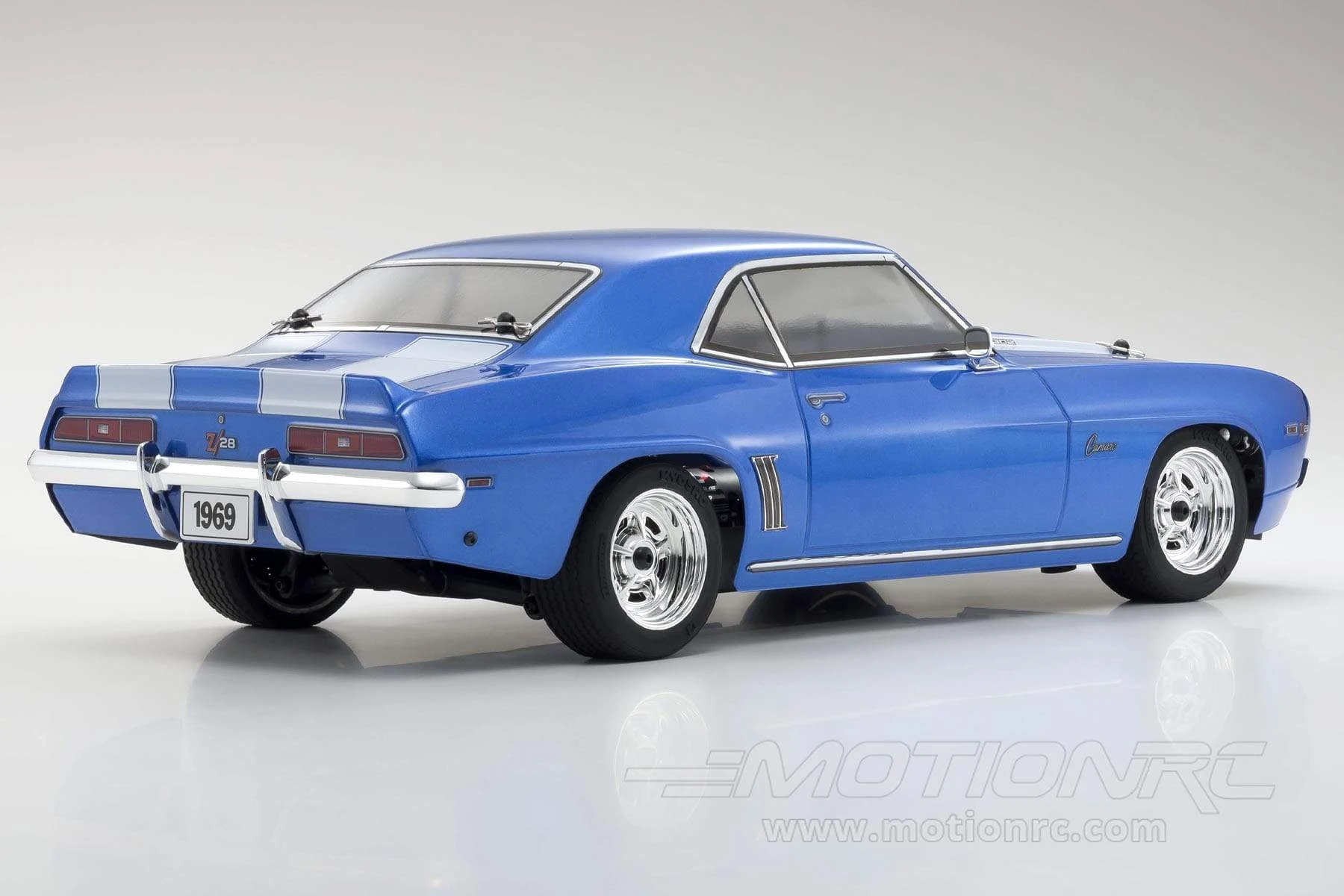

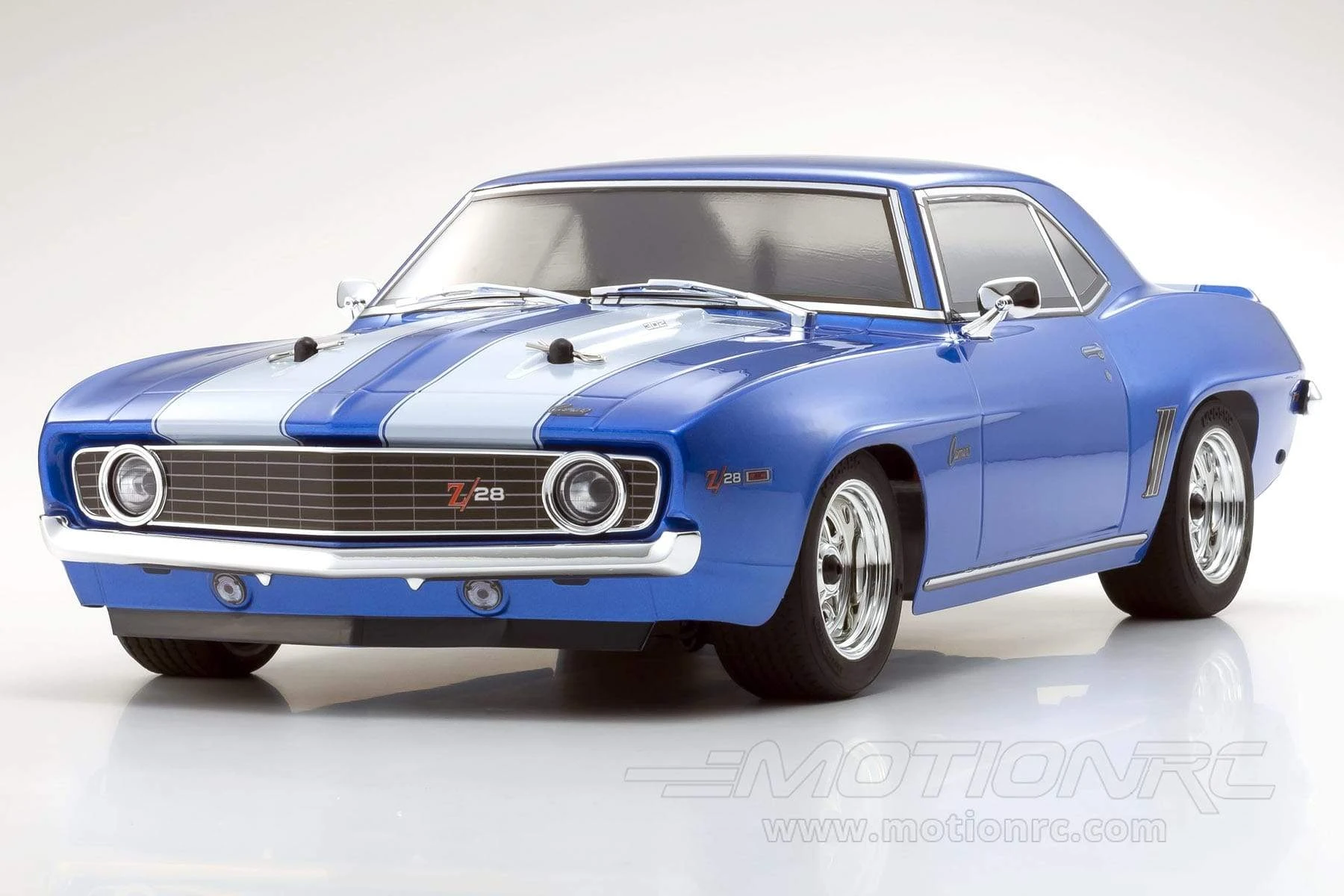

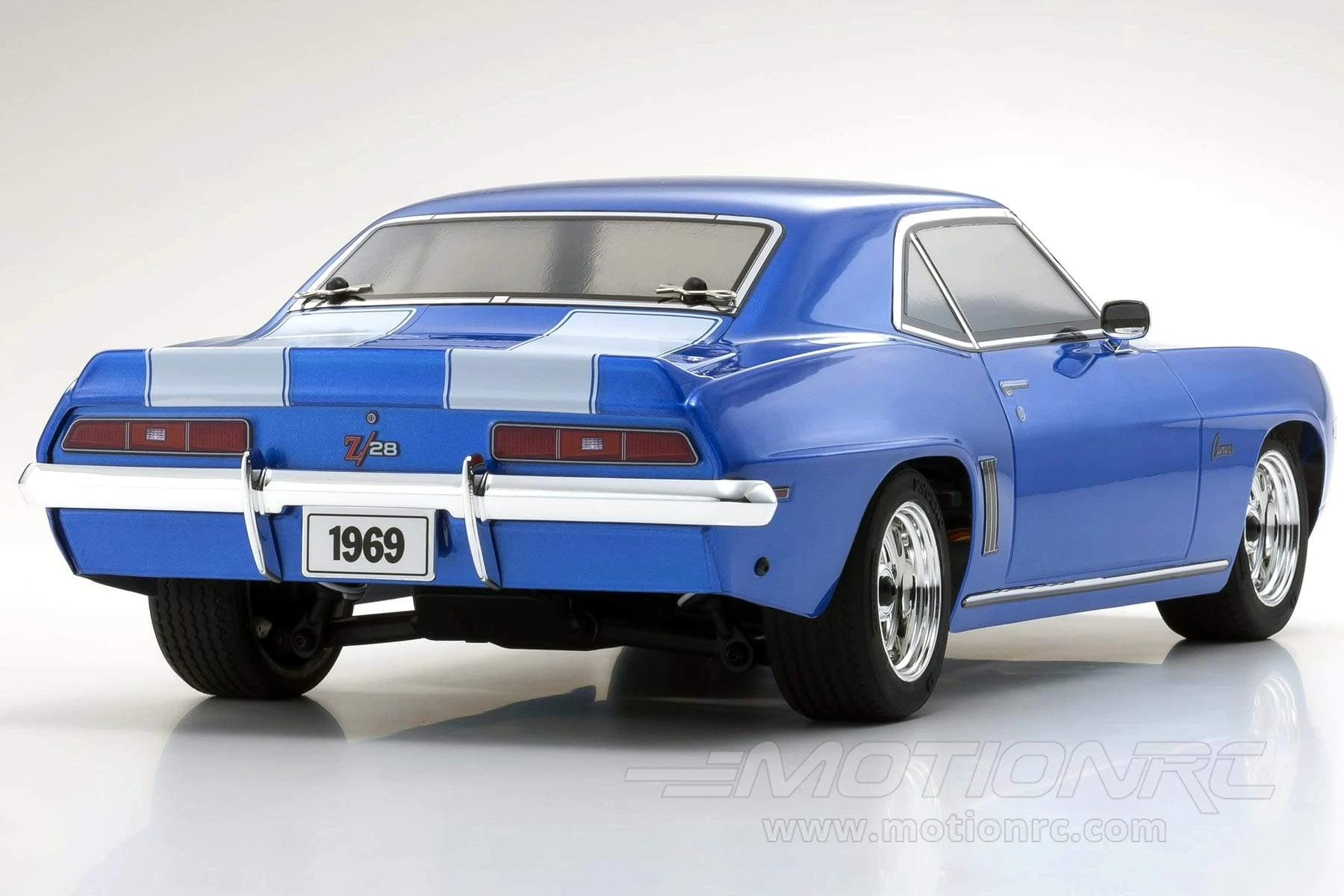

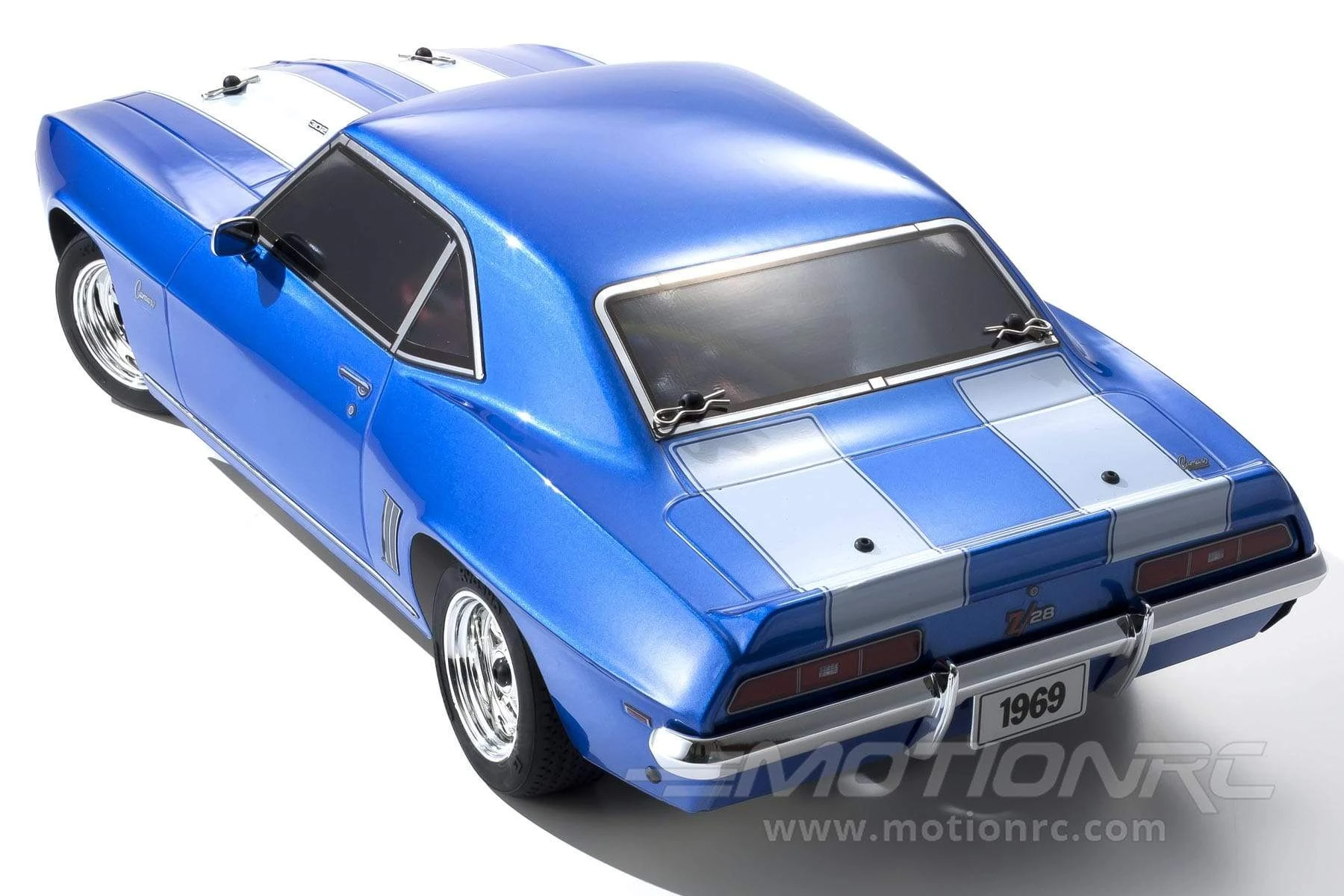

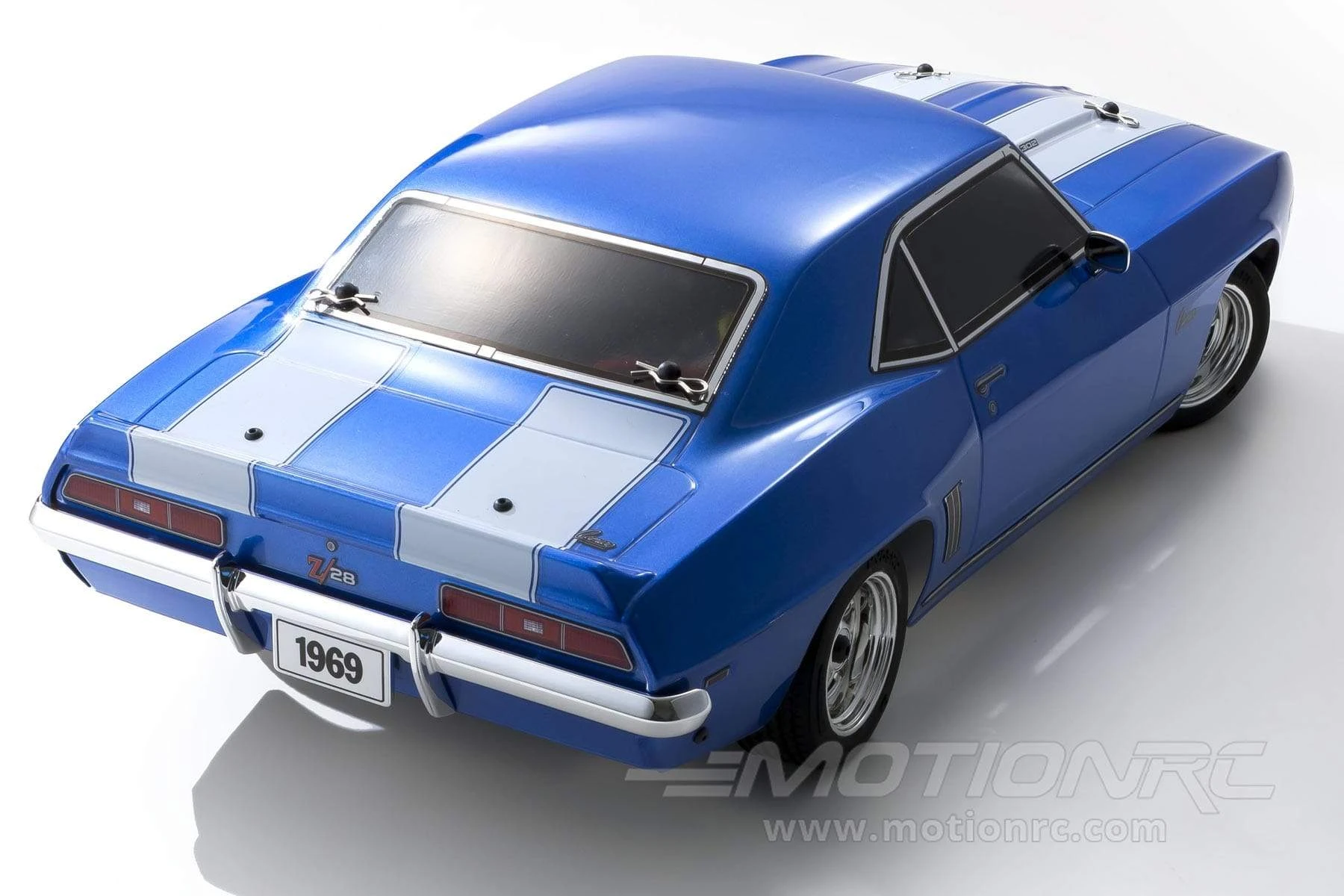

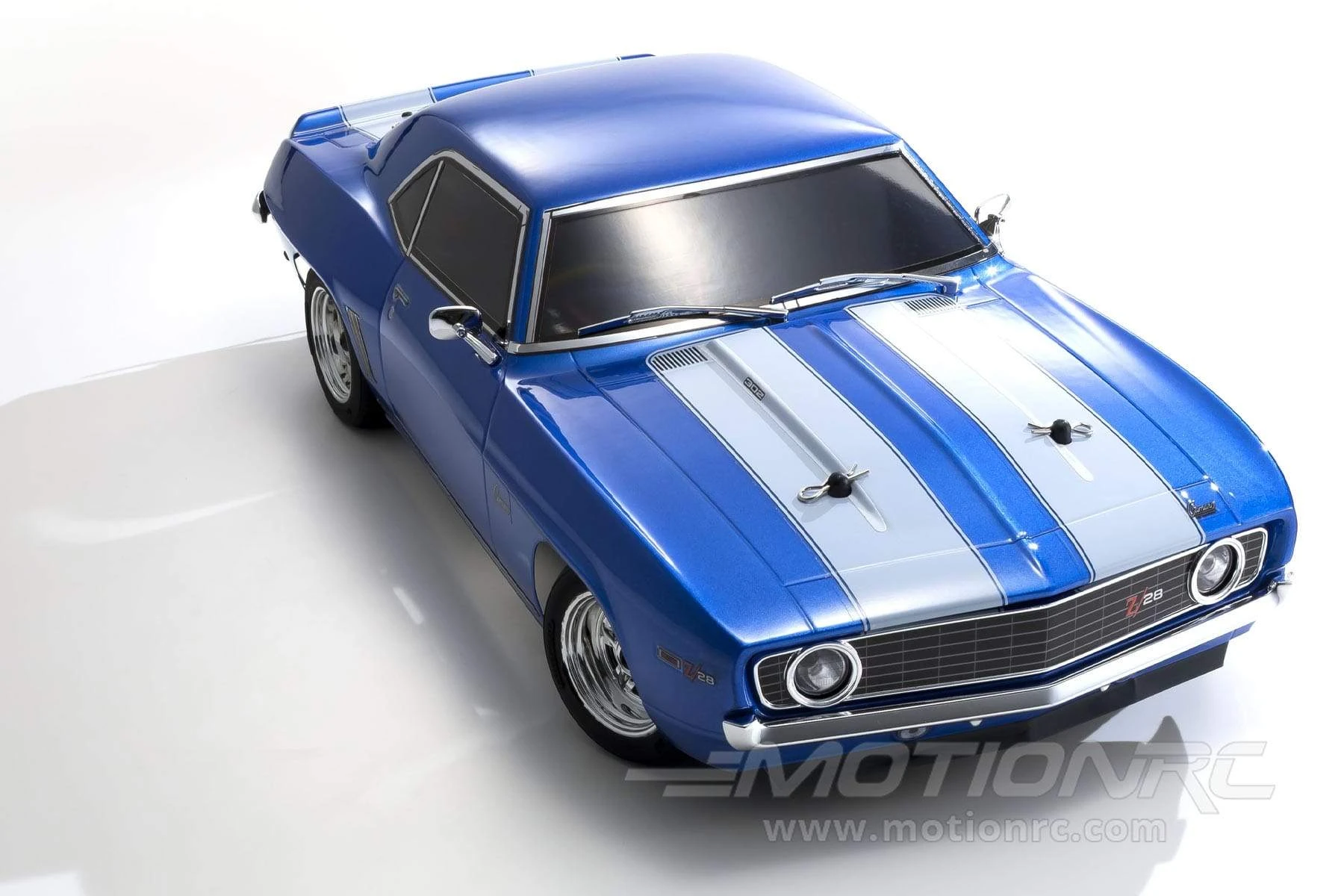

Classic American Muscle As the signature American sports coupe, the Chevrolet Camaro has maintained its popularity around the world. Sold during 1967 to 1969, the Z/28 was the highest specification in the first Camaro model. In addition to its long nose and short deck proportions, the classic coke-bottle front and rear fender lines are beautifully reproduced in 1/10 scale.

New Vintage Touring Tires New design Vintage Touring Car (VTC) tires & Rostyle type wheels to match vintage car style.

Features:

• Ultra Scale Body” replicates the fine details of the actual body of the car. Kyosho took a step further in scale realism
• New design shaft drive full-time 4WD touring chassis（FZ02）
• Factory-assembled Readyset package only requires 4 x AA alkaline batteries for the transmitter, and battery with charger for the chassis
• Equipped with 2-bevel grease-filled gear diffs on front and rear
• Large size dog bones and cup joints realize superior reliability and durability
• Belt mounting battery compartment allows various battery types to be used
• Full ball bearings that reduce drive loss equipped throughout the drive system
• Features KS202W waterproof steering servo
• Includes completely finished body with color scheme and decals applied
• Sealed differential and transmission deliver reliable performance, even on dusty parking lot surfaces
• Performance can be further enhanced by installing various optional parts

Includes:

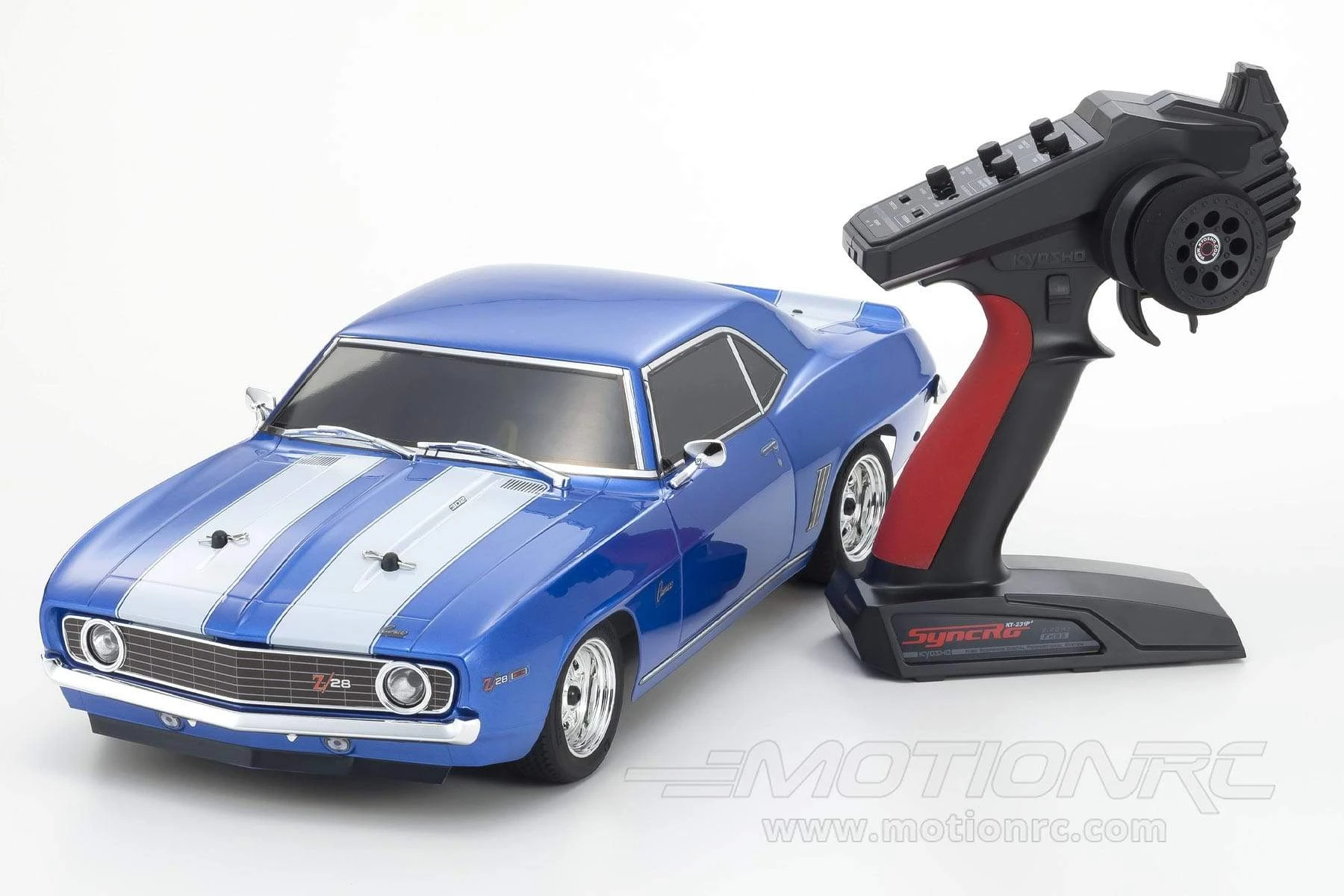

• Kyosho Fazer Mk2 1969 Camaro Z/28 1/10 Scale 4WD Car – RTR
• Completed chassis with R/C radio installed
• Factory assembled body complete with color scheme
• Syncro KT-231P+ transmitter
• Installed 60A waterproof electronic speed controller (forward/brake/reverse)
• +5mm off-set wheel hub (for 200mm width chassis), M4 x 22 wheel screw
• Hexagonal wrench
• Spanner

Requires:

• 4x AA NiMH batteries – we recommend the Admiral AA NiMH 2600mAh Rechargeable Batteries (Pack of 4)
• 7.4V 4000 – 5000mAh LiPo battery – we recommend Admiral 5300mAh 2S 7.4V 60C Hard Case LiPo Battery with T Connector
• 2S LiPo compatible battery charger – we recommend the SkyRC e3 11W 3 Cell (3S) Compact AC LiPo Battery Charger
