Black Horse Westland Lysander 2540mm (100″) Wingspan – ARF

DHC-2 Westland Lysander 2540mm (100″) Wingspan from Black Horse – Balsa Wood ARF – BHWL000

The Westland Lysander was designed by British manufacturer Westland Aircraft as an army co-operation and liaison aircraft. The Lysander was designed by W.E.W. “Teddy” Petter, who would go on to design aircraft such as the EE Canberra, Lightning and Folland Gnat.

The Lysanders extraordinary short take-off and landing performance made it ideal for clandestine operations during WW2 where it undertook missions for the Special Operations Executive placing and collecting agents from occupied France.

Our model is scaled to approximately 1:6 and attention has been given to providing a realistic appearance with outstanding flight characteristics. The model was designed for electric power but can also be flown using an internal combustion engine of about 30-40cc displacement.

Visit the Official Black Horse Westland Lysander 2540mm Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.

Features:

• High level of prefabrication right out of the box

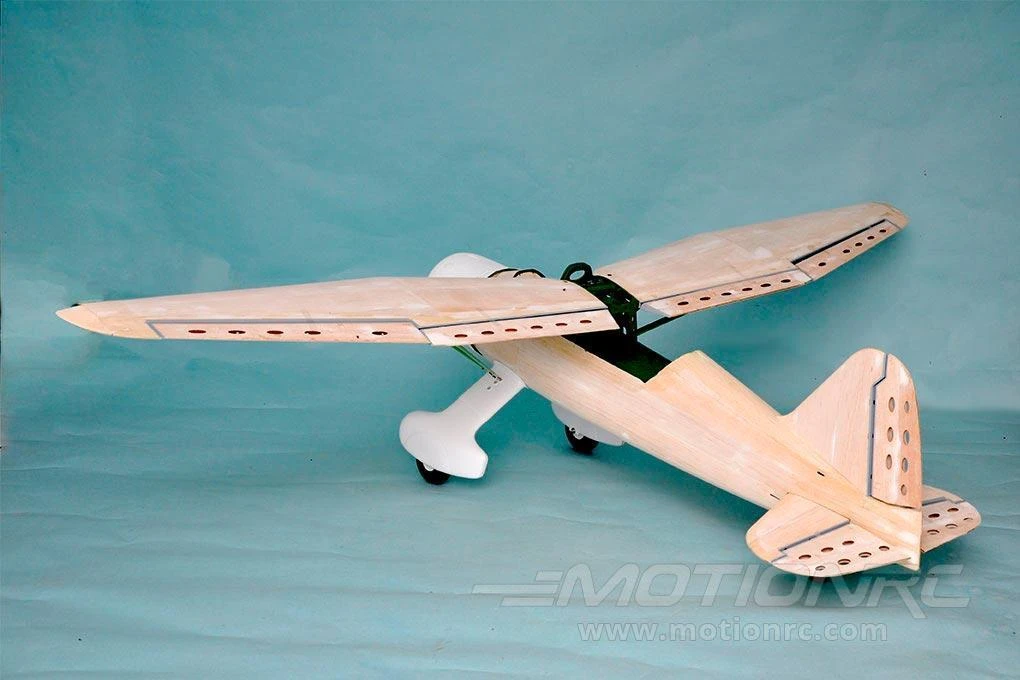

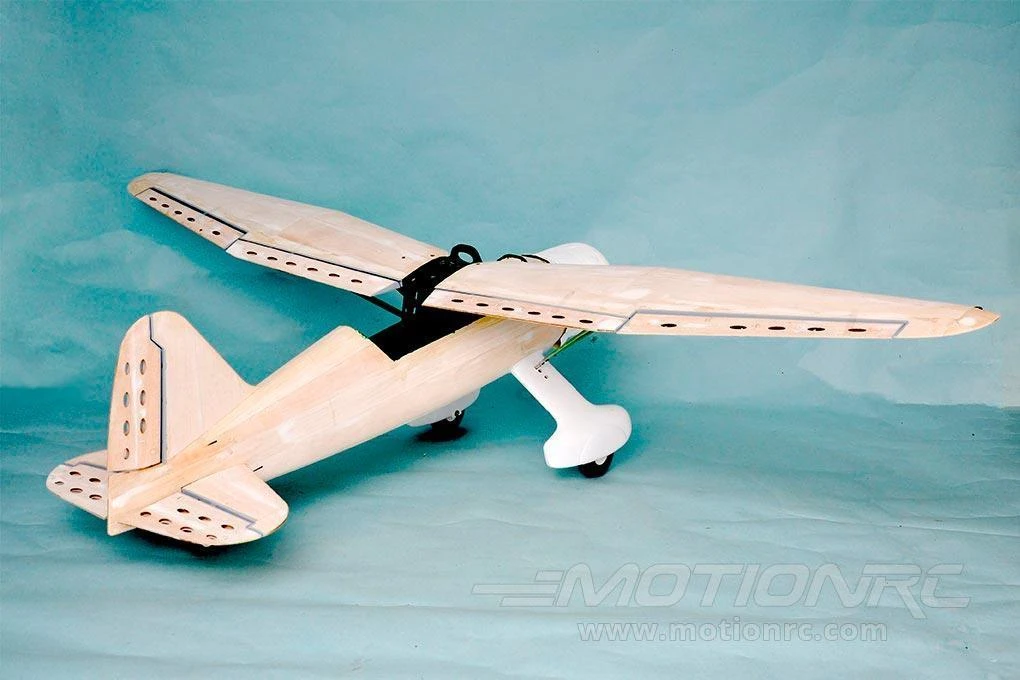

• Lightweight, strong, and fully sheeted laser cut balsa and plywood construction
• Panel lines and details printed directly onto the pre-applied, high quality covering
• Aerofoiled tail surfaces
• Recessed hinges on all control surfaces
• Pre-drilled hinge mounting holes
• Heavy-duty pin hinges on all control surfaces

• Large easy access fuel tank/battery/servo access hatches with sprung loaded latches

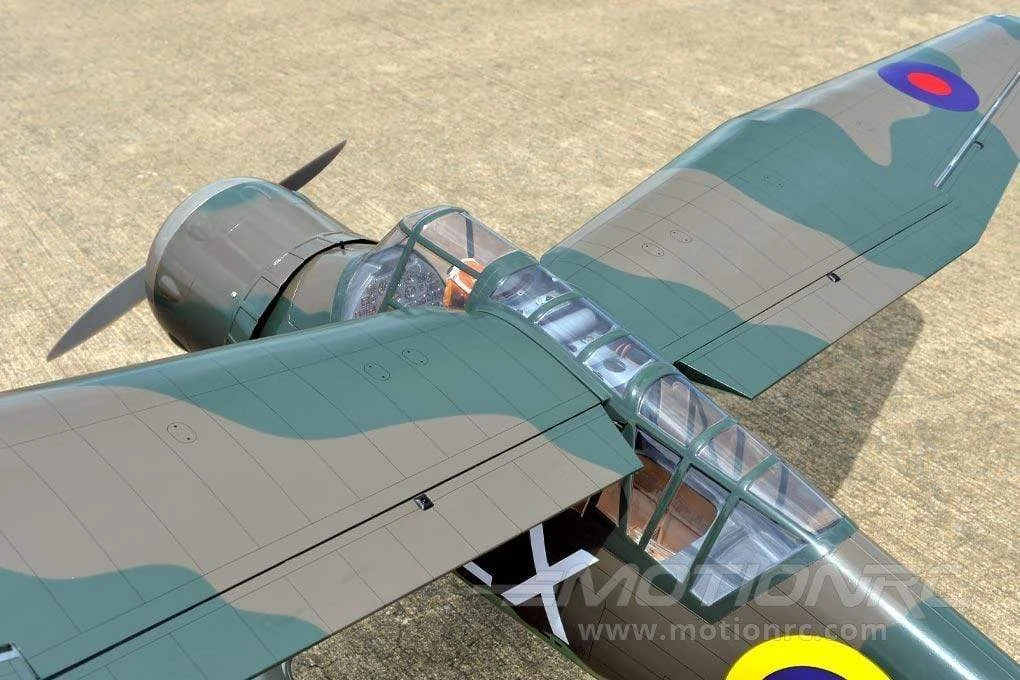

• Painted and detailed cockpit, pilot and interior included
• Fiberglass control horns with ball link connector
• comprehensive control and fitting accessories included
• Two-piece, plug-in wings simplify transportation and assembly
• Fiberglass cowl and glass reinforced landing gear covers/pants
• Mounts for both electric and gas power options included
• Fully illustrated instruction manual included and available for download (see tab above)

Includes:

• Black Horse Westland Lysander 2540mm (100″) Wingspan – ARF

Requires (Electric):

• 6-8 Channel radio – select a minimum 6 channel radio from our Radio Collection
• 6-8 Channel receiver – select a minimum 6 channel receiver from our Receiver Collection
• 2500-3200 Watt Brushless Outrunner Motor – we recommend the Admiral GP26 6330-245Kv Brushless Motor
• 100-120 Amp Brushless ESC – we recommend ZTW Gecko 120A ESC OPTO High Voltage Brushless ESC
• 8-18 Amp UBEC – we recommend ZTW 18A BEC / UBEC
• 7x 45g standard servos – we recommend HS-625MG
• For 8S setup TWO 4 Cell 14.8V 5000 mAh LiPo Batteries with EC5 connector – we recommend TWO Admiral Pro 5000mAh 4S 14.8V 60C LiPo Batteries with EC5 Connector
• 2 to 1 Series adapter – we recommend Admiral EC5 2 to 1 Series Adapter
• Electric propeller – we recommend the APC 18×12 Thin Electric Propeller
• 6 Cell compatible battery charger – select a minimum 6 cell (6S) charger from our Charger Collection

Requires (Gas):

• Engine: 30-35cc 2-stroke (NGH GT35 recommended). 38-42cc 4-stroke (NGH GF38 recommended)
• Gas Propeller: 18×10 – 20×8 (2 Stroke and 4 Stroke)
